Thermoregulator programmable wireless room digital wifi smart thermostat temperature controller for boiler floor water heating

R1765.72
  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description


    Special discount before heating season!!!
    Now you can get special discount before heating season. As well as big coupon $4.00.
    The price will going back to normal price in heating season.

    The thermostat support wall-mounted and table stand.

    The picture from customer.
    customer pictures.
    smart trv
    1
    APP CONTROL / APP AND DEVICE PROGRAMMABLE / REMOTE CONTROL
    thermostat
    Well-built

    five-stars-feedback

    thermostat
    Excellent packing
    excellent-packing
    thermostat
    Note:
    1. 2AA alkaline batteries would not be supplied cause the Express companies’ rule.
    2. the application currently support for Android and IOS , you can get the download link by scaning QR code on packing box or user manual. Or you can search “poersmart” on Google play or APP store.


    Memery after power off suddenly

    All your temperature setting and device connection information will be stored after power off suddenly. It will connect automatically when the power come back.

    Delivery time

    We will arrange your package in 1 working days.

    • The package contains:


    1. wireless programmable heating thermostat -PTC10
    2. wireless receiver-PTR10
    3. gateway-PTG10
    4. mounting accessories
    5. user manual
    6. electric version Russian manual

    thermostat
    • Thermostat’s Introduction:
    1,The PTC10 is an easy-to-use wireless thermostat can be fit on any ldquowetrdquo heating only system or system with electronic, gas, oil boiler. Suitable for installing new system or updating existed system.

    2,Working together with Receiver PTR10, it not only wirelessly switch the heating system On and Off, also change and program the room temperature.

    3,Connected to Internet with Gateway PTG10, this thermostat PTC10 could be operated remotely via App by mobile phone, PC or pad; Without gateway, thermostat PTC10 could be used as a normal standard thermostat.



    • Receiver’s Introduction:


    The receiver PTR10 is wired directly to motorized zone valves or boiler actuator, switch the heating system On and Off by wireless two-way communication between thermostat and receiver; manual operation is available in case.


    • Gateway’s Introduction:


    The gateway PTG10, providing internet access for home smart heating controls, is directly plugged into socket which better nearby home wireless broadband router, no need a spare Ethernet port on the userrsquos home broadband router.


    thermostat

    • Thermostat’s Feature

    1, Control and program remotely via POER free App (connecting the unit with Internet by POER gateway), offer the programming maximum convenience and flexibility.

    2, Without connection to Internet, works as standard programmable thermostat, max. 7 time periods per day, 5+2 days/7 days/1 day independent programming for option.

    3, Wireless two-way communication between thermostat and receiver/gateway by RF.

    4, Auto, manual, holiday, ECO and override modes.

    5,Frost protection and Valve protection function

    6,Optimum Start functionality

    7,Memory holds user programs and clock even when power failed

    8,Indoor humidity sensor, display the humidity inside

    9,Large LCD display with backlight

    10,Battery powered with low battery indicator

    11,Wall Mounted or Desk Stand to make sure the best location

    12,Automatic Summer/Winter time change

    13,Child lock

    • Receiver’s Feature:

    1. One receiver, two heating zones can be controlled
    2. Wireless two-way communication with thermostat by RF
    3. Override control by manual operation
    4. LEDs indicate zonesrsquo working situation
    5. Wall mounted
    • Gateway Feature:

    1,Wi-Fi connection with Internet

    2,Wireless communication between thermostat (valve) and gateway via RF

    3,LED indicate working situation

    thermostat

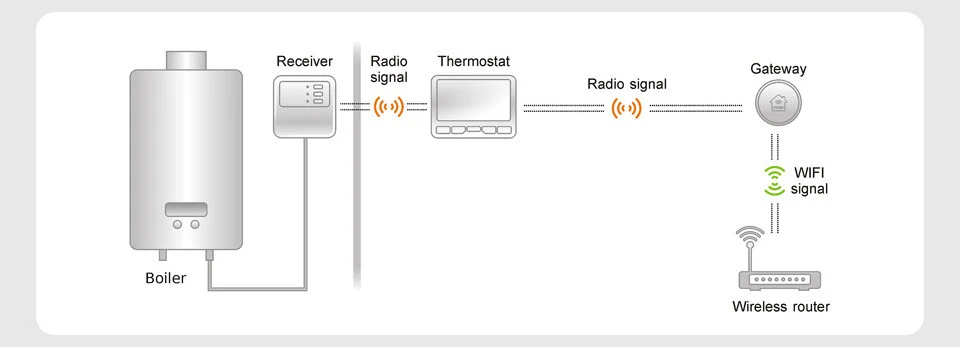

    • Application Example:


    ApplicationApplication2



    • Product Data:

    1. wireless programmable heating thermostat -PTC10:

    Operating Temperature

    0 to 50degC

    Control mode

    Heating system

    Display

    LCD with backlight

    Transmitting frequency

    868 MHz(433 MHz-PTC10-433) 2 way

    Communication Range(open space)

    100 meters

    Power supply

    2 x AA alkaline batteries

    Battery life

    Typically 2 years

    Temperature setting range

    7degC to 32degC (0.5degC step)

    Temperature control accuracy

    +/-0.3degC

    Measurement interval

    every minute

    Frost protection temperature

    7degC

    Humidity range

    10 to 90%RH

    Humidity accuracy

    +/-5%RH

    Time display

    12 hour/24 hour

    Dimensions (HxWxD)

    117.2 x 87.2 x 26.6mm

    IP class

    IP30

    Standard

    CE

    Weight

    211g with battery


    2. wireless receiver-PTR10

    Operating Temperature

    0 to 50degC

    Transmitting frequency

    868 MHz(433 MHz-PTR10-433) 2 way

    Communication Range(open space)

    100 meters

    Power

    2W

    Power supply

    100VAC~240VAC, 50Hz

    Switch rating

    240VAC 50Hz, 5A resistive, 2A inductive

    Switch Type

    SPDT relay

    Dimensions (HxWxD)

    98.3x 98.3 x 31.3mm

    IP class

    IP30

    Standard

    CE

    Weight

    145g

    3. gateway-PTG10

    Operating Temperature

    0 to 50degC

    Transmitting frequency

    868 MHz(433 MHz-PTG10-433) 2 way

    Communication Range(open space)

    100 meters

    Power

    1.5W

    Power supply

    100-240 AC, 50Hz

    Connectors

    Internet via Wi-Fi(2.4G)

    Dimensions

    60.5timesOslash51 mm

    IP class

    IP30

    Standard

    CE



    • Dimension:


    1. wireless programmable heating thermostat -PTC10:

    thermostat dimension
    2. wireless receiver-PTR10:
    receiver dimension
    3. gateway-PTG10

    gateway dimension

    • Receiver’s volt free contact:

    Receiver's volt free contacts

    • Receiver’s wiring layout:

    1. Burner(direct Control)

    Burner(direct control)

    2. Combi Boiler

    Combi boiler

    3. Electric Heater

    Electric heater

    4. Thermal Actuator

    Thermal actuator

    5. Zone Valve

    Zone valve





    boiler1

    Boiler2
